Lumens, Lux, Candela, CCT, and CRI Explained

Lumens describe total visible-light output. Lux describes how much visible light reaches a surface. Candela describes luminous intensity in a particular direction. CCT describes whether white light appears warmer or cooler. CRI compares how colors render under a source against a reference.

These specifications answer different questions. A high-lumen work light can spread light broadly, while a lower-lumen spotlight can put more intensity into a narrow direction.

Term	Describes	Useful for	Does not tell you alone
Lumen (lm)	Total luminous flux	Overall output comparison	Brightness at a particular distance
Lux (lx)	Illuminance on a surface	Light reaching a work area	Total output or beam reach by itself
Candela (cd)	Intensity in a direction	Spotlight throw and beam concentration	Total output
CCT (K)	White-light color appearance	Warm versus cool appearance	Color fidelity
CRI	Color rendering versus a reference	General color-discrimination context	Output, efficiency, or perfect color matching

Lumen (lm)

A lumen is the SI unit of luminous flux—visible light output weighted for human vision. It is the closest of these terms to “how much visible light comes out in total.”

Lumens help compare products intended to distribute light in similar ways, but optics matter. A wide area light and a tight spotlight with the same lumen rating can look very different on the project. Diffusers, reflectors, beam angle, distance, placement, and surrounding surfaces change what the user sees.

Do not use watts as a brightness substitute. Watts describe electrical power input or consumption under stated conditions; lumens describe visible-light output.

Lux (lx)

Lux is the SI unit of illuminance, or luminous flux arriving per unit area:

1 lux = 1 lumen per square meter

That definition does not mean a 1,000-lumen lamp always creates 1,000 lux. Only an idealized, uniform distribution of all 1,000 lumens over exactly one square meter would do that. Real beams spill, overlap, reflect, and change with distance and angle.

Lux is useful when a manufacturer supplies a measurement distance, beam position, and test method. A bare “2,000 lux” claim without distance and location is hard to compare because moving the meter changes the reading.

Candela (cd)

Candela is the SI base unit of luminous intensity in a given direction. NIST distinguishes it from lumens: candela concerns directional intensity, while lumen concerns total visible output.

Candela is especially useful for spotlights and throw lights. More candela generally indicates more intensity along the stated direction, but the complete beam pattern still matters. Peak candela does not describe how wide the useful beam is or how smooth its edges are.

Beam pattern

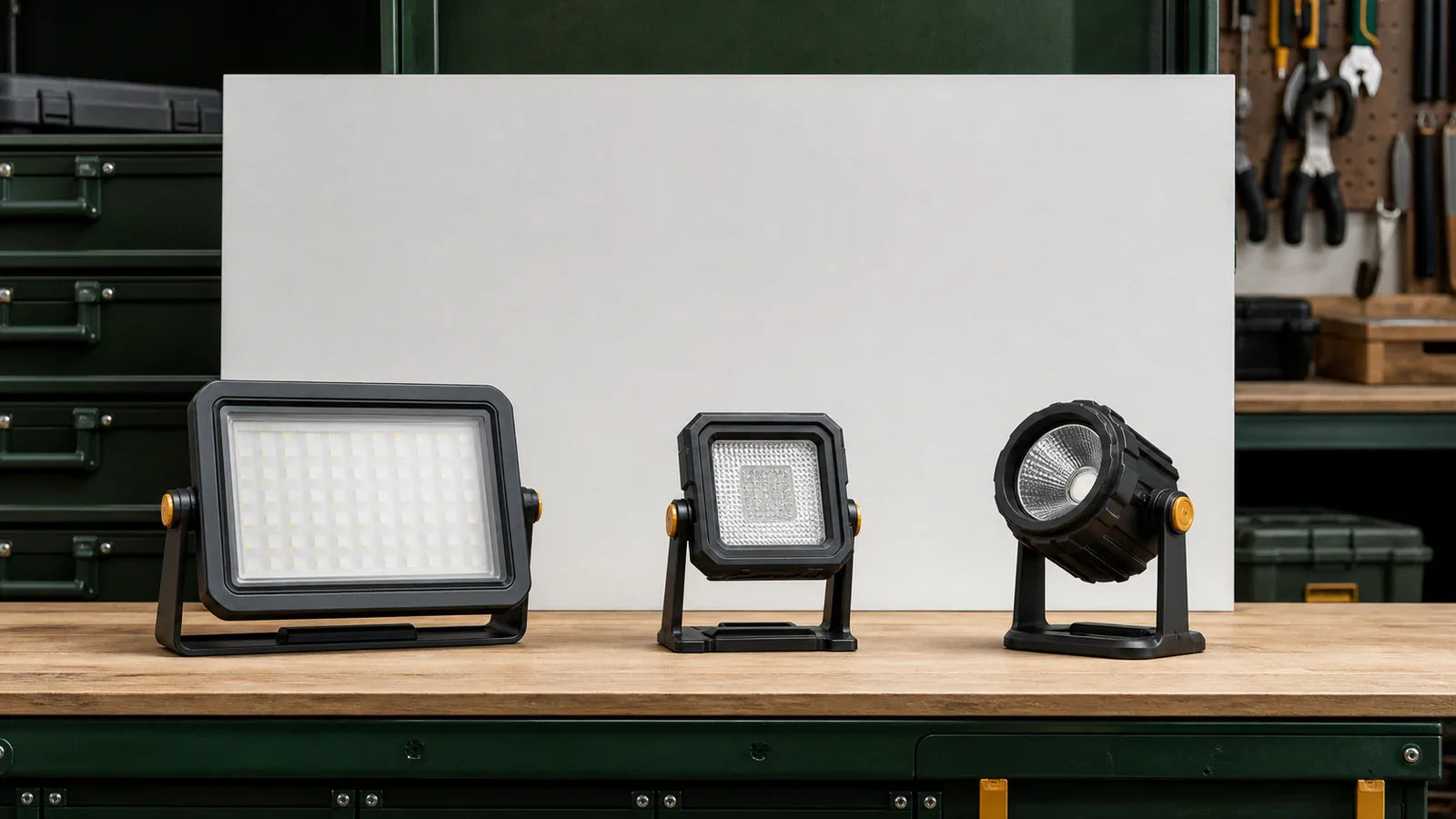

Beam pattern describes where the light goes. A flood pattern spreads output across a broad area; a spot pattern concentrates more of it. Some work lights provide adjustable heads or several modes.

When buying, compare beam images or measured beam angles only when the test conditions are clear. Also check mounting stability, glare control, runtime test conditions, ingress rating, and whether batteries are included. Never position a portable light where it can fall, create a trip hazard, or shine directly into someone's eyes.

Correlated color temperature (CCT)

CCT describes the color appearance of white light in kelvin (K). ENERGY STAR explains that lower values such as 2700–3000 K appear warmer or more yellow, while 4000 K and higher appear cooler or more blue.

CCT is not operating temperature. A “5000 K” light is not physically running at 5000 kelvin. It describes appearance relative to a reference.

For a workshop, CCT choice is partly preference and partly context. Matching nearby lights can reduce distracting color differences. CCT alone does not show whether paint, stain, wire colors, or surface defects will appear accurately.

Color rendering index (CRI)

CRI is a comparison of how colors shift under a light source relative to a reference source of comparable color temperature. Higher general CRI can be useful where distinguishing colors and finishes matters, but CRI does not measure lumen output, beam shape, glare, flicker, or efficiency.

A single CRI value is also a summary. Specialized color work may require additional metrics or sample-specific information. Do not label a light “color accurate” from an unspecified CRI number alone.

What matters when buying a work light

Use the job to rank the specifications:

• Lighting a room or workbench: lumens, beam spread, placement, and glare
• Seeing at distance: candela, beam pattern, and stated measurement distance
• Inspecting finishes or colored wiring: CCT consistency and documented color-rendering data
• Cordless use: exact battery platform, tested runtime mode, included parts, and charge plan
• Dusty or damp work: complete IP rating and manufacturer exposure limits

For electrical-unit context, read Volts, Amps, and Watts. For enclosure terms, see IP Rating, Laser Class, and PPE. Then browse all current tools, or ask product support for the exact model's beam, battery, and included-parts documentation.

Frequently asked questions

Are more lumens always better?

No. Useful light depends on beam distribution, distance, placement, glare, runtime, and the task.

Can I convert lumens directly to lux?

Only when the illuminated area and distribution are known. A real product comparison also needs distance and measurement position.

Is 5000 K brighter than 3000 K?

Not by definition. CCT describes color appearance, not total output or illuminance.
