Abrasive Backing, Open vs. Closed Coat, Hook-and-Loop, and PSA

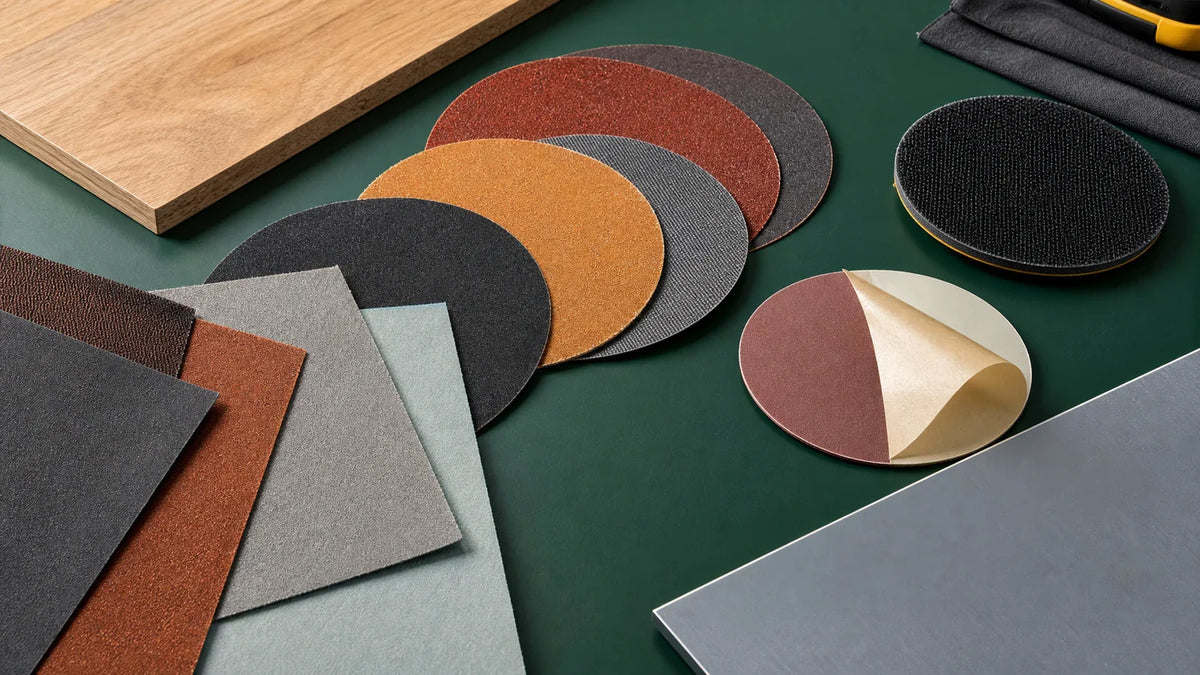

An abrasive's backing carries the grain and affects flexibility, tear resistance, and stability. Open coat and closed coat describe how densely abrasive grain covers the face. Hook-and-loop and PSA describe how a disc or sheet attaches to its pad.

Two products with the same grit number can behave differently because their grain, coat, backing, bond, anti-loading treatment, hole pattern, and attachment are different.

Feature	Main tradeoff	Buying check
Paper backing	Often smooth and economical; strength varies by weight	Hand or machine use, wet/dry approval, backing weight
Cloth backing	Greater strength and flex options	Required flexibility, pressure, belt direction, joint
Film backing	Dimensionally consistent and tear resistant in stated uses	Pad, attachment, wet/dry, and application approval
Open coat	More space between grains for debris	Material prone to loading
Closed coat	Denser grain coverage	Finish and material/application match
Hook-and-loop	Quick removal and reattachment	Matching pad face and hole pattern
PSA	Pressure-sensitive adhesive	Clean compatible pad and one-use workflow

Abrasive backing

A coated abrasive is built by bonding abrasive grain to a flexible backing. Backing is not the grit itself. It supports the grain as the sheet, disc, or belt bends and moves under load.

Backing letters are manufacturer and product-family specifications, not a single universal “higher is always better” scale. In paper products, A-weight is generally lighter than heavier C-, D-, E-, or F-weight papers. Cloth systems use their own classifications, such as flexible J-weight and stronger X-, Y-, or H-weight constructions. Read the actual maker's chart.

Paper backing

Paper can provide a smooth surface and a range of flexibility and strength. Lighter paper can conform for hand finishing; heavier or reinforced paper can support machine sanding. It can still tear if the edge catches or if a product is used beyond its intended pressure.

Do not assume paper is wet-sanding compatible. Use water only when the product is specifically marked and instructed for wet use.

Cloth backing

Cloth backings are selected when flexibility, toughness, or resistance to demanding loads matters. Norton describes J-weight cloth as highly flexible, X-weight as stronger, and Y- and H-weight constructions as progressively suited to more demanding stock removal.

That does not mean heavy cloth is best for every finish. A strong, stiff backing can be less conformable. Match it to the machine, contour, pressure, removal rate, and finish goal.

Film backing

Film-backed abrasives use a plastic film rather than paper or cloth. Product-specific constructions can provide consistent thickness and tear resistance, but “film” does not establish the grain, coat, attachment, pad, or approved speed. Treat it as one part of the specification.

Open coat

Open-coat abrasives leave more space between grains. Those spaces give sanding debris somewhere to go, which can reduce loading on materials such as softwood, paint, or filler. 3M explains that open spacing helps keep debris from clogging cutting points.

Open coat is not automatically cooler, faster, or longer-lasting in every material. Grain type, pressure, speed, extraction, and anti-loading treatment also matter.

Closed coat

Closed coat uses denser grain coverage. 3M describes this greater grain density as capable of producing finer finishes than an open-coat sheet in a comparable product context. Closed coat can be useful when the material and finish benefit from more cutting points, but it may load more readily on some soft or gummy materials.

Do not choose coat density without also checking the material and maker's application list.

Loading

Loading is the buildup of removed material between and over abrasive grains. The surface stops cutting effectively and may create extra friction or inconsistent scratches.

Open coat, stearate or other anti-loading treatments, and dust extraction can help in products designed to use them. Do not clean a powered abrasive while it is moving, and do not use a solvent or cleaning method that the manufacturer has not approved.

Hook-and-loop

Hook-and-loop discs attach to a matching pad face and can usually be removed and reattached while serviceable. 3M notes that its Hookit-style system grips a loop backing and supports convenient changes.

Fit still depends on diameter, pad type, hole pattern, edge shape, and maximum speed. A disc that overhangs or undercovers the pad can behave unpredictably.

PSA

PSA means pressure-sensitive adhesive. A liner is peeled away and the abrasive is pressed onto a clean compatible pad or board. PSA can provide a low-profile, firm attachment, but dust or debris on the pad can prevent uniform adhesion. Removal and reuse are usually less convenient than hook-and-loop.

PSA and hook-and-loop are not interchangeable without the correct approved pad or interface.

Vacuum-hole pattern

Dust holes in a disc must align adequately with the backing pad and extraction path. Six-hole, eight-hole, multi-hole, and mesh patterns are not automatically equivalent. Poor alignment can reduce collection or leave unsupported areas.

OSHA notes that sanders can generate substantial fine wood dust and identifies ventilation and dust capture as important controls in workplace settings. Home users should likewise identify the material being sanded, use the tool's compatible collection system, and select PPE from the material and tool instructions.

What matters when buying

Check grit system and size, grain, backing, coat, attachment, disc/belt dimensions, hole pattern, wet/dry approval, material list, tool speed, and pad instructions. Read Fractional Inches, Millimeters, and Grit for grit context and IP Rating, Laser Class, and PPE for dust-control terms.

To compare current accessories, browse all tools. If pad face, diameter, holes, or speed are unclear, ask product support with the sander and pad model numbers before ordering.

Frequently asked questions

Is open coat always better for wood?

No. It often helps resist loading, but wood species, coating, grit, removal goal, backing, and machine all matter.

Can I put a PSA disc on a hook-and-loop pad?

Not directly. Use only a manufacturer-approved interface or the correct pad.

Does a heavier backing mean a finer finish?

No. Heavier generally concerns strength; finish also depends on grit, grain, coat, backing flexibility, pressure, and sanding pattern.
