Tile Vibration Tools: A Buying and Setup Guide for DIY Installers

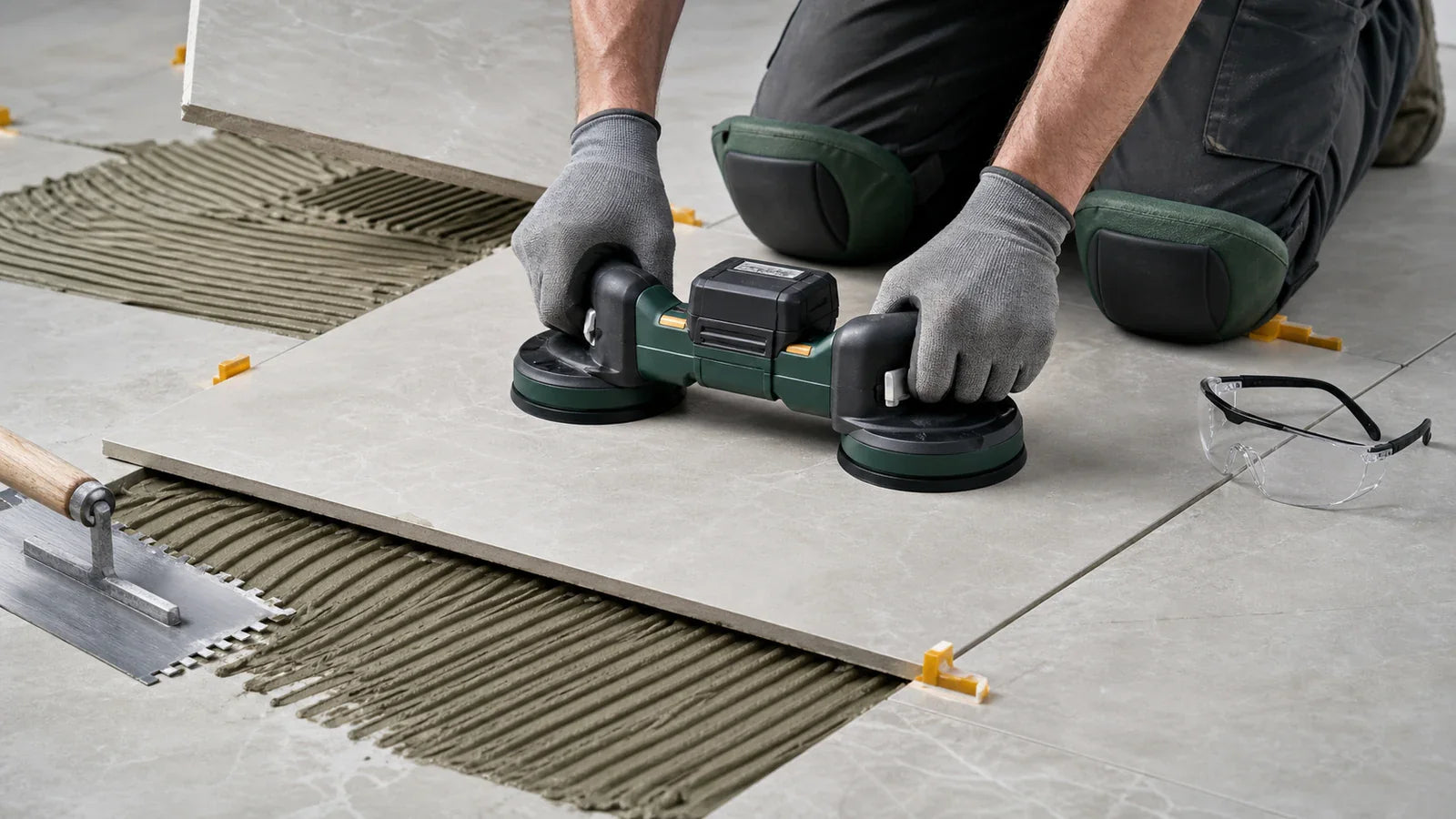

A cordless tile vibration tool combines a suction cup with an adjustable vibrating mechanism. On a suitable tile surface, the cup can help grip and position the tile; after placement, vibration can help bed it into fresh mortar. It is an accessory to a correct installation system—not an automatic leveler and not proof of full mortar coverage.
The important buying questions are whether the cup can seal to your tile, whether the rated load and tile limits suit the work, whether vibration is adjustable, and whether the tool has a trustworthy manual, battery, charger, service path, and spare cup. The important setup question is whether the substrate, mortar, trowel, coverage, and movement plan are already correct.
Quick answer: Choose a model with documented surface restrictions, a conservative rated load above the tile's actual weight, controllable vibration, two secure hand positions, and a current manual. Start at low intensity, keep the cup clean, and periodically lift a tile to inspect mortar transfer. Never assume vibration fixes poor troweling or a bad substrate.
What the tool can—and cannot—do
These tools may assist with:
- Gripping a smooth or compatible tile surface.
- Moving or fine-positioning a tile within the model's limits.
- Applying distributed vibration while bedding tile into mortar.
- Reducing repeated manual tapping on broad-format pieces.
They do not:
- Make a substrate flat, level, plumb, sound, or waterproof.
- Select the correct mortar or trowel.
- Guarantee that mortar ridges collapsed.
- Remove every void.
- Set grout-joint width or movement joints.
- Make a lippage-control clip into structural support.
- Prove that an overhead or wall tile is safely bonded.
The name “tile leveler” is especially misleading. Vibration can move a tile in the fresh bed, but the final plane depends on the prepared surface, mortar thickness within product limits, neighboring pieces, layout controls, and installation technique.
Mortar coverage remains the real check
LATICRETE's technical guidance explains that coverage depends on a suitable substrate, proper trowel selection, keying mortar into the surface, combing ridges in one direction, back-buttering where required, embedding across the ridges, and periodically removing a tile to inspect transfer. MAPEI summarizes common industry targets as 80% coverage in dry areas and 95% in wet areas.
Those percentages are not a reason to aim for a patchy minimum. Corners and edges need support, and the applicable standard, tile, mortar, location, and project specification may require more. Follow the current installation-system instructions.
A vibrator can assist the embedding step. It cannot tell you what coverage exists under an opaque tile. Lift representative pieces while the mortar is fresh and adjust the trowel, mortar consistency, open time, back-buttering, direction of movement, or technique when transfer is insufficient.
Check whether suction will work on your tile
Suction performance changes with surface texture, dust, moisture, cup condition, curvature, and porosity. A cup that seals to polished porcelain may not seal reliably to structured, heavily textured, relief, small mosaic, curved, dusty, or wet material.
Before purchase, find the manufacturer's answer to:
- Approved tile materials and surface finishes.
- Minimum tile area needed for the cup.
- Maximum tile size, thickness, or weight.
- Whether the rating applies to horizontal lifting, vertical handling, or both.
- Whether the cup includes a vacuum-loss indicator.
- Cup inspection, cleaning, replacement, and test procedure.
Do not equate a headline suction-force number with a safe lifting capacity. Ratings may be stated in pounds, kilograms, newtons, or vague “suction” values under controlled conditions. Use only the manufacturer's stated working limit and method, with a safety margin; never lift a tile over a person or rely on one cup where the tile-handling plan requires multiple rated devices and installers.
Test the cup on a clean scrap or noncritical area at low height. If the seal creeps, leaks, or releases, do not use it for lifting.
Compare vibration control, not maximum RPM alone
Listings often emphasize maximum vibration frequency or a large number of speed steps. Those numbers do not establish better bedding. Tile size, thickness, fragility, mortar state, substrate, and tool placement affect the response.
Useful features include:
- A true low starting setting.
- Predictable steps or a variable dial.
- A trigger or switch you can release immediately.
- Two secure grips.
- A display that remains readable without moving your hands.
- A cup centered beneath the tool.
- A lock that cannot be engaged accidentally.
Begin with the lowest effective setting. Excess vibration can shift layout, pump mortar into joints, move adjacent tiles, break suction, or stress fragile material. If the manufacturer does not document how to select speed, ask support rather than inventing a tile-size chart.
Planning a tile-tool setup? Browse current tools, then verify the exact surface limits, rated load, vibration range, battery, charger, cup, handles, included case, and replacement parts on the live listing and manual.
Battery and ergonomics
The tool must remain controllable while suction and vibration are active. Compare total weight with the battery, grip spacing, balance, and whether the battery interferes with keeping the base flat.
Confirm that the battery and charger are explicitly approved for the model. Generic “21V” or adapter claims do not prove compatibility. Check charge location, temperature limits, storage, and whether the charger must remain dry.
Hand-arm vibration exposure is also model- and task-dependent. One Clarke manual provides a model-specific use limit tied to its declared vibration data; that limit cannot be copied to another tool. For extended work, follow the exact manual, take breaks, keep a relaxed but secure grip, and stop if numbness, tingling, pain, or loss of control develops.
Setup sequence
1. Prepare the installation system
Verify substrate flatness and readiness, waterproofing or membrane requirements, mortar selection, trowel, tile-back preparation, grout joint, movement joints, open time, and curing instructions. Dry-plan the layout.
2. Inspect the tool
Remove the battery. Check the cup for cuts, embedded grit, deformation, loose fasteners, and contamination. Check handles, controls, battery rails, and the cup attachment. Do not use a damaged cup.
3. Prepare tile and cup
Keep the contact area clean and dry unless the exact manual says otherwise. Dust or slurry can weaken suction and scratch a finish. Confirm the tile is within the model's stated surface and load limits.
4. Prepare and comb mortar
Mix and apply mortar exactly as directed. Key it into the substrate and comb in one direction with the selected notch. Back-butter when required. Spread only what can be covered within open time.
5. Place the tile
If using suction to handle the tile, engage the cup as the manual specifies and test the seal at low height. Use additional people or rated handling equipment for pieces that require them. Set the tile into fresh mortar without trapping hands.
6. Vibrate from low to sufficient
Hold both grips, start low, and keep the base fully seated. Work systematically rather than parking at one edge. Watch joint width and neighboring tiles. Stop before the tile drifts or mortar floods the joint.
7. Verify coverage and plane
Periodically lift a representative tile while correction remains possible. Inspect mortar transfer, edges, corners, and ridge collapse. Check the tile plane with the appropriate straightedge or layout reference. Adjust the installation method—not merely the vibration setting—when coverage is poor.
8. Release and clean
Switch off and wait for movement to stop. Release suction using the designed control; do not pry the cup with a sharp tool. Remove the battery before cleaning. Follow the manual for cup, housing, and battery care, and do not immerse parts not rated for it.
Common mistakes
- Buying from a suction-force headline without surface and load limits.
- Assuming textured tile will hold because smooth glass did.
- Using vibration to compensate for skinned-over mortar.
- Skipping back-buttering or one-direction troweling where required.
- Never lifting a tile to inspect coverage.
- Starting at maximum intensity.
- Letting the tool bridge an uneven tile surface.
- Carrying a large slab over feet or people with one unverified cup.
- Charging a wet battery or charger.
- Treating a bubble vial on the tool as proof that the installed surface is correct.
For layout reference before mortar is spread, see A First Laser-Level Checklist for Shelves, Cabinets, and Tile and verify the final URL.
Unsure whether a model fits your tile? Contact TBD product support with the exact tool model, tile material, finish, dimensions, weight, and project location. We can compare documented limits; installation approval must come from the tile, mortar, substrate, and system instructions.
The bottom line
A tile vibration tool is valuable when it gives controlled handling and bedding assistance on compatible tile. Buy documented limits and controllability, not a dramatic suction or RPM claim. The quality check remains beneath the tile: correct materials, correct troweling, adequate transfer, supported edges and corners, and periodic inspection.
