Gauge, AWG, NPT, OD, and ID: Size Terms Explained

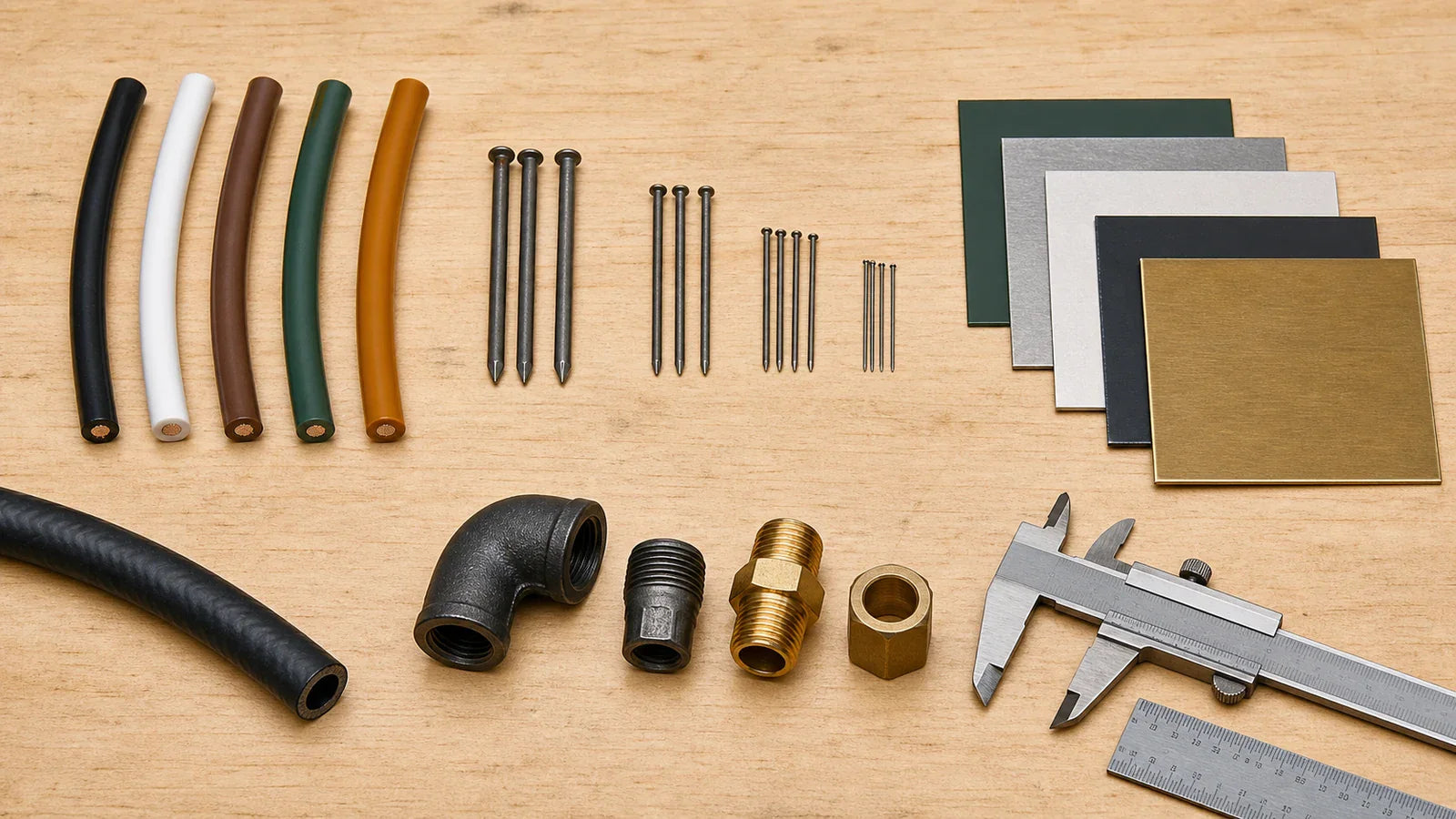

Gauge is not one universal scale. AWG is a wire-size system. Sheet-metal gauge depends on the material and gauge table. Nailer gauge identifies a fastener family. NPT identifies an inch-based tapered pipe-thread family, while nominal pipe size is not a direct ruler measurement of outside diameter.
Always identify the system before using the number.
Gauge
Gauge is a family of customary size labels used in different industries. The meaning changes with context.
A lower AWG number identifies a larger conductor. A sheet-metal gauge can represent different thicknesses for steel, stainless steel, or nonferrous metal. A nailer's 18-gauge brad family is not interchangeable with a 16-gauge finish-nail family.
Common mix-up: “12 gauge is larger than 18 gauge” may be directionally true in some systems, but that does not make the dimensions or application comparable across wire, metal, nails, or other categories.
American Wire Gauge (AWG)
AWG means American Wire Gauge. It describes conductor size. Within AWG, a lower gauge number corresponds to a larger conductor diameter and cross-sectional area.
AWG is not an ampacity promise by itself. Safe cord or wire selection can depend on:
- Tool current and voltage
- Cord length
- Conductor material
- Insulation and service rating
- Temperature and installation condition
- Wet/dry environment
- Connector and grounding condition
- Applicable electrical code and manufacturer instructions
Do not publish or rely on a one-line AWG = amps shortcut without the stated conditions and current governing source. For an extension cord, use the tool and cord manufacturer's table and inspect the complete cord.
Sheet-metal gauge
Sheet-metal gauge is a customary thickness designation within a particular material/system table. The same gauge number can represent different decimal thicknesses for different metals.
For a useful product specification, state:
gauge + material + decimal-inch or millimeter thickness
Do not convert a bare “16 gauge” label without identifying the material and table.
Nailer gauge
On a nailer, gauge identifies a fastener family. It does not tell you every compatibility detail.
Also check:
- Approved nail length range
- Head and shank style
- Collation format and angle where applicable
- Magazine and model compatibility
- Material/application and fastener instructions
DEWALT's cited 18-gauge brad-nailer manual lists nail gauge, length range, and air inlet as separate specifications. A matching gauge number alone does not prove that the nail fits another nailer.
NPT
NPT means National Pipe Taper. It is a tapered, 60-degree, inch-based pipe-thread form covered by ASME B1.20.1.
An example callout is:
1/4-18 NPT
This identifies a nominal pipe size, 18 threads per inch, and the NPT form. The nominal 1/4 is not the measured outside diameter of the thread.
NPT is not a pressure rating. The finished connection's suitability depends on the fitting, equipment, material, thread condition, seal method, assembly, fluid, temperature, pressure, and manufacturer instructions.
Do not treat NPT, NPTF, NPSM, BSPT, BSPP, or a close-looking metric thread as interchangeable.
Nominal pipe size
Nominal size is a standardized name, not always a direct measured diameter. A fitting marked 1/4 NPT will have thread dimensions different from 0.250 inch.
Use a current manufacturer or standards-based thread chart and a proper identification method. Match the full thread family and size, not a ruler estimate.
OD
OD means outside diameter. It is the measured diameter across the outside of a tube, hose, shaft, or fitting feature where the product defines it that way.
OD can be a direct size in one tubing system while a nominal label controls another. Keep the system attached to the number.
ID
ID means inside diameter. On a hose or tube, ID affects the internal flow path, but it does not identify the thread or fitting end.
A hose can have the right ID and the wrong fitting, pressure rating, material, reinforcement, or service condition. Match the complete hose/fitting/tool specification.
Fitting and hose checklist
- Thread family: NPT, NPTF, NPSM, BSP, metric, or another documented form
- Nominal size and pitch/TPI
- Male or female end
- Hose/tube OD and ID where applicable
- Material and fluid/service compatibility
- Pressure and temperature ratings
- Sealant and assembly instructions
- Tool/compressor model requirements
Never improvise fitting substitutions in compressed-air, gas, hydraulic, or other pressure systems.
Frequently asked questions
Does a higher AWG number mean a larger wire?
No. Within AWG, a higher gauge number identifies a smaller conductor.
Is 1/4 NPT a 1/4-inch outside diameter?
No. It is a nominal pipe-thread size. Identify it with the correct standard and dimensional information.
Is every 18-gauge nail the same?
No. Length, collation, head, shank, and nailer approval also matter.
